Description

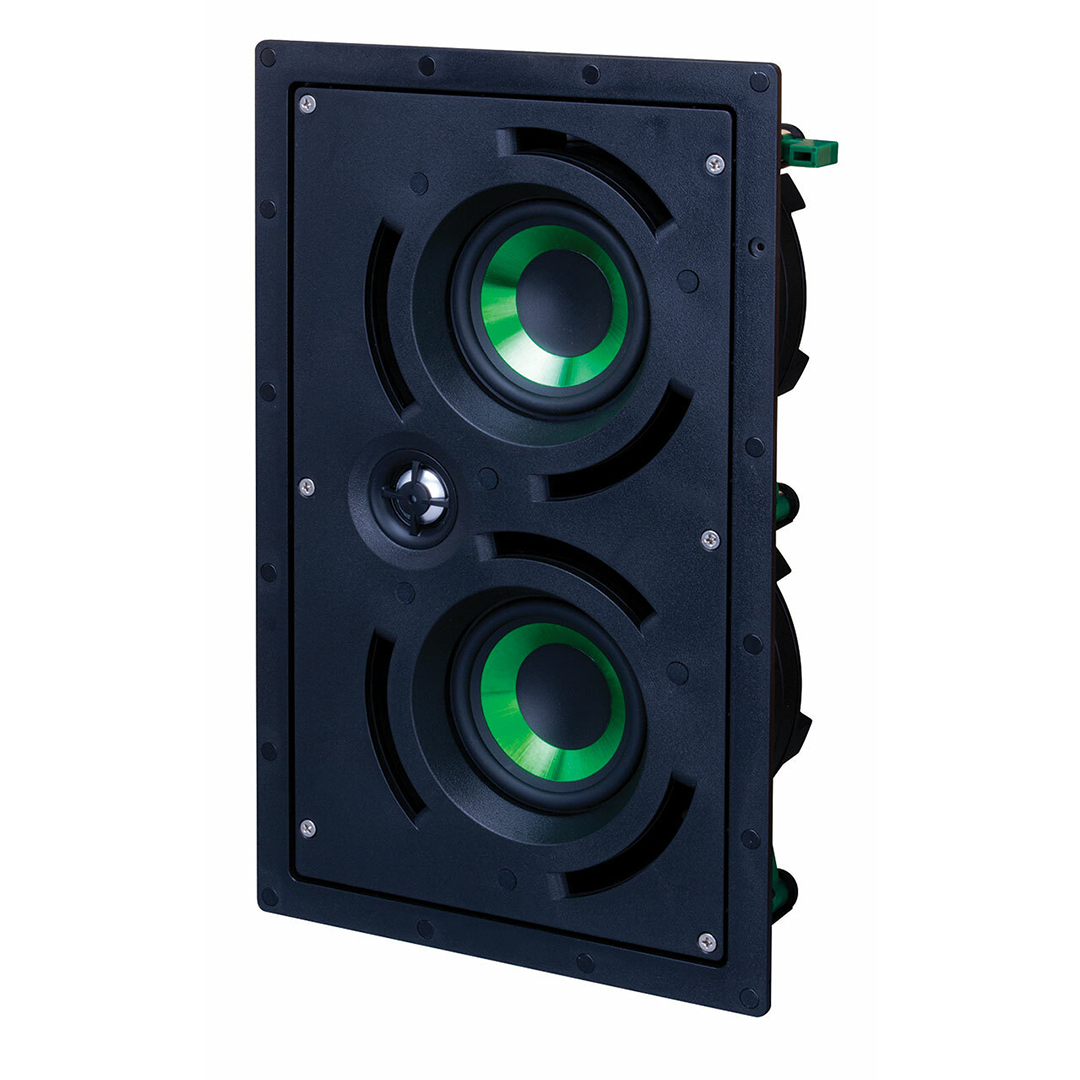

Speaker Type – In Ceiling/In Wall 2-Way
Woofer – 4″ Fluted Injected Poly
Tweeter – 3/4″ Aluminum Dome
Frequency – 68 Hz – 24 kHz
Sensitivity – 89db
Butyl Rubber Surround
Sonic Vortex® Ported Transmission Line
Magnetic Bezelless Grille – White; paintable
Low Impedance – 8Ω
25V Taps – 0.2, 0.3, 0.5, 0.9, 1.8 Watts
70V Taps – 1, 1.9, 3.8, 7.5, 15 Watts
100V Taps – 1.9, 3.8, 7.5, 15 Watts
Connector Type – Four position plug-in screw terminal
Power Handling – In 8Ω Mode 5-80W
Speaker Weight – 2.59 lbs (1.175kg)
Cutout – 6.4″ (162mm)
Diameter – 7.4″ (186mm)
Depth – 3.82″ (97mm)
Highlights – 25/70/100 Volt Switchable
