Description

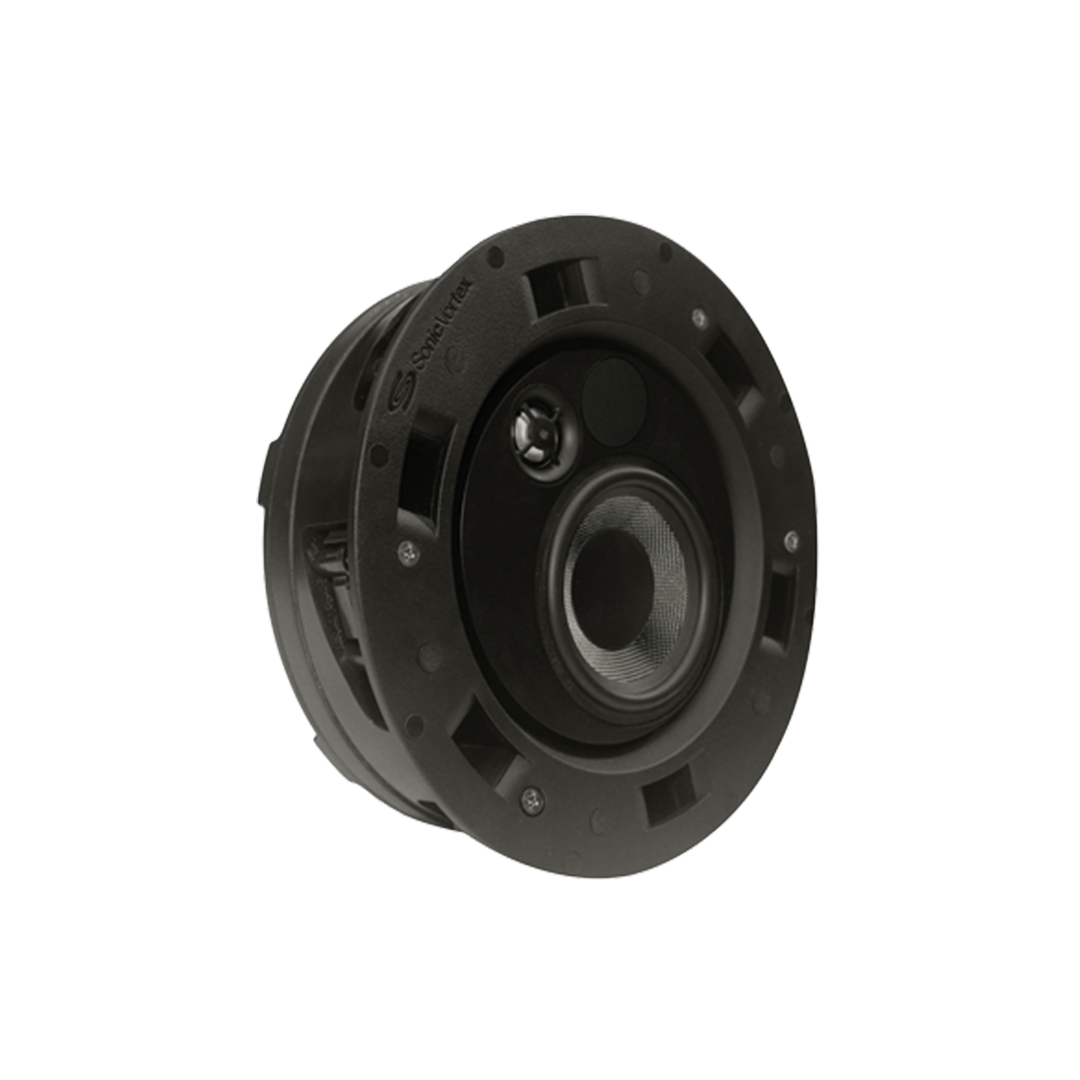

Speaker Type – In Ceiling/In Wall 2-Way
Woofer – 4″ Fluted Injected Poly
Tweeter – 3/4″ Aluminum Dome
Frequency – 62 Hz – 24 kHz
Sensitivity – 88db
Butyl Rubber Surround
Sonic Vortex Ported Transmission Line
Magnetic Bezelless Grille – White; paintable
Impedance – 8
Connector Type – Gold Spring Push Terminal
Depth – 2.76″ (70.2mm)
Speaker Weight – 2.62 lbs (1.19kg)
Cutout – 8.4″ (214mm)
Diameter – 9.5″ (241.4mm)
Frequency/Crossover Setting – Full range only
Power Handling – 5-80W
EZBracket Size – F
Highlights – Ultra Shallow Depth Pancake Less than 3″ Depth (70mm)
Includes round and square grills
